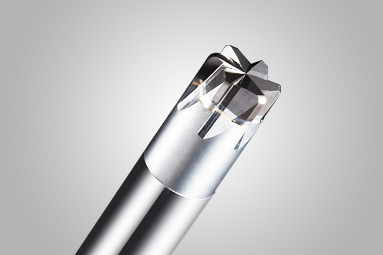

Our lineup of CBN radius end mills has been enhanced with the addition of products with 5 or 6 blades to products with 3 or 4 blades. Despite the increased number of blades, these tools ensure the same high precision and long life-span as 2-blade ones. Products with a medium diameter of φ4.0 to φ6.0 are also included in the lineup. These tools contribute significantly to reducing man-hours because, despite the higher feed rate, the wear volume of the tools is equivalent to that of 2-blade products. Please specify the blade diameter, corner radius, effective length, and number of blades. We are able to customize the products to your needs.
Features
- High-precision machining with a diameter accuracy of 0µm to -3µm and a radius accuracy of ±2μm
- A longer life-span than that of carbide end mills, which marks the shift from the age of carbide end mills to the age of CBN end mills
- High quality and low prices
- Availability of customization
| Blade | Diameter | Corner R | Effective length | Blade length | Neck taper angle | Shank diameter | Total length |
|---|---|---|---|---|---|---|---|
| 5 | Φ2.5～Φ3.0 | R0.3以下 | 5.0～15.0 | 2.0 | 15° | 6 | 50 |
| 6 | Φ2.7～Φ3.0 | R0.3以下 | 5.0～15.0 | 2.0 | 15° | 6 | 50 |
[/ultimate_info_table][ultimate_info_table design_style=”design04″ color_scheme=”custom” package_sub_heading=”Radius End Mill (Middle Sized) Product Line-up”]
| Blade | Diameter | Corner R | Effective length | Blade length | Neck taper angle | Shank diameter | Total length |
|---|---|---|---|---|---|---|---|
| 2･3･4･5･6 | Φ4.0～Φ6.0 | R0.3以下 | 10.0～15.0 | 2.0 | 15° | 6 | 50 |
[/ultimate_info_table]
